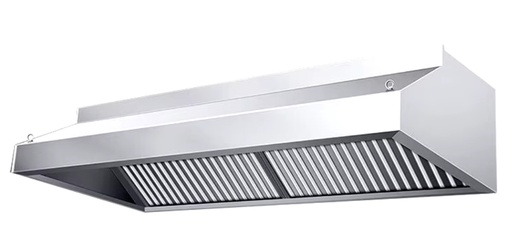

Size - 71" x 24"
Stainless steel

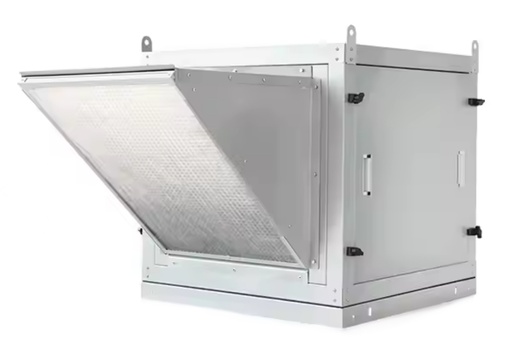

Size - 31.9" x 59.5 x 31.9" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 1HP, 820RPM, 4500CFM, Running Amps - 5.8 - 6, Rated Amps - 10. Full mold, full welded stainless steel structure. Axial impeller with higher efficiency and lower noise, compact design, easy to install. It is designed for direct connection in line with standard diameter circular ducting. Chinese energy saving label, ISO9001:2000 standard.

Size - 38.9" x 64.2 x 38.9" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 1HP, 820RPM, 6000CFM, Running Amps - 5.8 - 6, Rated Amps - 10. Full mold, full welded stainless steel structure. Axial impeller with higher efficiency and lower noise, compact design, easy to install. It is designed for direct connection in line with standard diameter circular ducting. Chinese energy saving label, ISO9001:2000 standard.

Size - 28" x 28” Outer x 36.4" Base x 29.3" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 2HP, 7500CFM/1300RPM. Running Amps - 6 - 6.3 , Rated Amps - 10. This fan can be used as a smoke fan, working in high temperature environment. Full mold aluminum alloy structure. UL705 and UL762 Test Grant, ISO9001:2018 controllable standard. The highest working environment temperature is 320F & can reach 572F

Size - 33" X 33’Base x 44.5" Outer Body x 34.4" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 2HP, 9900CFM/900RPM. Running Amps - 6.8 - 7.2, Rated Amps - 10. This fan can be used as a smoke fan, working in high temperature environment. Full mold aluminum alloy structure. UL705 and UL762 Test Grant, ISO9001:2018 controllable standard. The highest working environment temperature is 320F & can reach to 572F

Size - 24.8" Outer x 28.5" Base x 25.3" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 1HP, 1400RPM, Running Amps - 5.8 - 6, Rated Amps - 10. This fan can be used as a smoke fan, working in high temperature environment. Full mold aluminum alloy structure. UL705 and UL762 Test Grant, ISO9001:2018 controllable standard. The highest working environment temperature is 320F & can reach to 572F

Size - 28” x 28” Base x 36.4" Outer x 29.2" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 2HP, 1400RPM, Running Amps - 5.8 - 6, Rated Amps - 10. This fan can be used as a smoke fan, working in high temperature environment. Full mold aluminum alloy structure. UL705 and UL762 Test Grant, ISO9001:2018 controllable standard. The highest working environment temperature is 320F & can reach to 572F

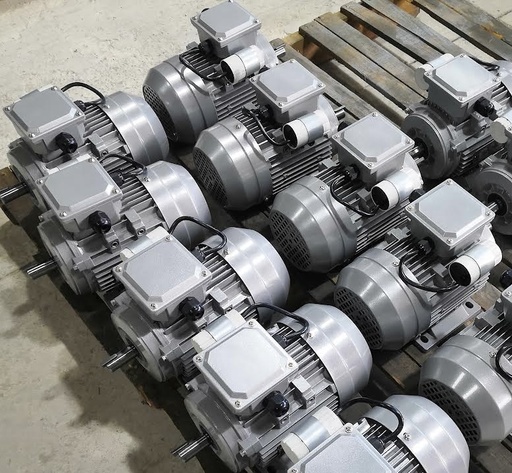

Replacement Fan Motor-
220 Volts / 60Hertz, 1PH, 1.5HP, 4P

Replacement Fan Motor-
220 Volts / 60Hertz, 1PH, 2HP, 4P

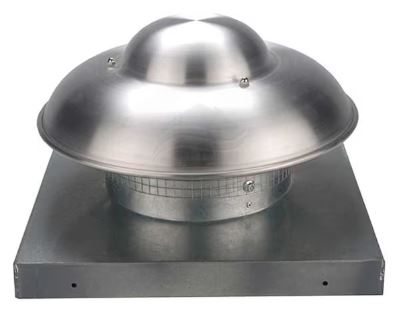

Size - 29" Outer x 25" Base x 21" High
Stainless steel - 220 Volts / 60Hertz, 1PH, 2HP, 4P, 1338CFM This fan can be used as a ventilation fan, working in high temperature environment. Full mold aluminum alloy structure. UL705 and UL762 Test Grant, ISO9001:2018 controllable standard. The highest working environment temperature is 320F & can reach to 572F
